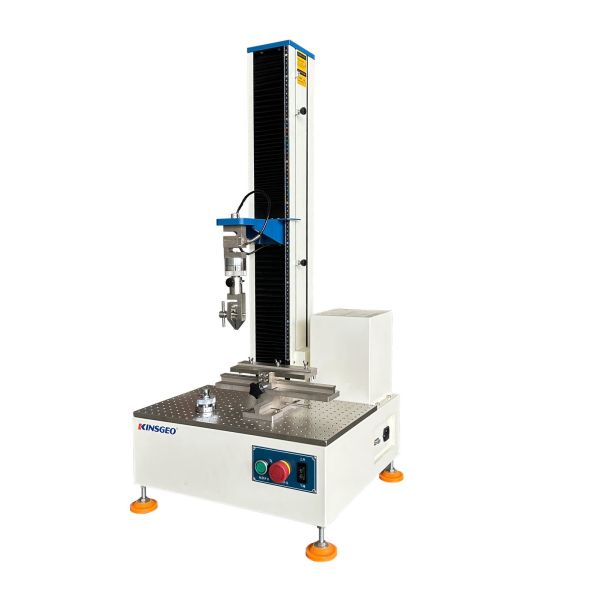

ingle Column Universal Tensile Compression Test Equipment For Rubber Plastic Fabric ASTM D695

Name: ingle Column Universal Tensile Compression Test Equipment For Rubber Plastic Fabric ASTM D695
Brand: KINSGEO
Price: 3800 USD

Supply Ability : 30Sets/month

Accuracy : +/-0.5%

Brand Name : KINSGEO

Model Number : KJ-1065A

MOQ : 1 set

Price : USD/3800/SET

Delivery Time : 15 work days

Power : AC220V 50Hz

Product name : Computer control single column universal testing machine

Power supply : 220V 50Hz

Motor : Panasonic Servo Motor

Place of Origin : China

Warranty : 1 Year

Capacity : 1.2.5.10.20.50.100.200.500kg optional

Stroke : 650mm(excluding clamp)

Operation : Computer windows operation

Certification : CE/ISO

Resolution : 1/250000

Tester resolution : constant the resolution

Payment Terms : T/T,D/A

Application : universal tester

Standard : BS.EN.ASTM

Usage : Universal Testing Machine

Weight : 65kg

Name : electronic tensile tester

Contact Now

Usage

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Product Description

A. Using the computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

B. Having steady performance, high accuracy, powerful software function and easy operation.

C. Using the USA high-precision load cell.Machine accuracy is ±0.5%.

Technical Specifications

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Model	KJ-1065A
Capacity	1.2.5.10.20.50.100.200.500kg optional
Stroke	650mm
Speed Range	50-400mm/min adjustable, constant speed, 300mm/min
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/50,000
Motor	Adjustable speed motor
Display	Windows operation
Dimensions (W×D×H)	(W×D×H) 58×58×125cm
Optional Accessories	Stretcher, air clamp
Weight	80kg
Power	1PH, AC220V, 50/60Hz

ingle Column Universal Tensile Compression Test Equipment For Rubber Plastic Fabric ASTM D695
