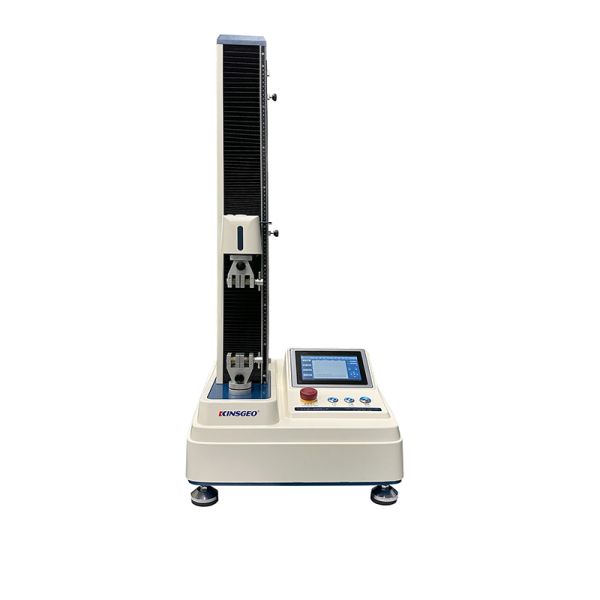

ASTM Single-column Film Tensile Testing Machine High-precision Tensile Testing Machine

Name: ASTM Singlecolumn Film Tensile Testing Machine Highprecision Tensile Testing Machine
Brand: KINSGEO
Price: 3700 USD

MOQ : 1 set

Usage : Universal Tensile Tester

Power supply : can be customized

Warranty : 1 Year

Operation : Computer windows operation

Price : USD/3700/SET

Standard : BS.EN.ASTM

Capacity : 20

Tester resolution : constant the resolution

Resolution : 1/250

Payment Terms : T/T,D/A

Brand Name : KINSGEO

Place of Origin : China

Weight : 70kg

Power : AC220V 50Hz

Supply Ability : 30Sets/month

Accuracy : +/-0.5%

Delivery Time : 15 work days

Application : universal tester

Stroke : 650mm(excluding clamp)

Certification : CE/ISO

Product name : Computer control single column universal testing machine

Motor : Panasonic Servo Motor

Name : electronic universal testing machine

Model Number : KJ-1065

Contact Now

Uses:

This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

Design standard:

ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7

Character:

1 That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

2 Have steady performace, high accuracy, powerful software function and easy operation.

3 Use the USA high-precision load cell.

Design Standards	ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7
Model	KJ-1065A-N
Capacity	5, 10, 20kg (optional)
Stroke	650mm
Speed Range	0.1-500mm/min adjustable, constant speed, 300mm/min
Test Space	120mm MAX
Accuracy	±0.5%
Resolution	1/500,000
Motor	Adjustable speed motor
Display	Force and elongation display
Dimensions (W×D×H)	50×50×120cm
Optional Accessories	Stretcher, air clamp
Weight	60kg
Power	1PH, AC220V, 50/60Hz

Product Images
