Oven Adhesive Holding Force Tester Constant Temperature Retention Test Device

Name: Oven Adhesive Holding Force Tester Constant Temperature Retention Test Device
Brand: KINSGEO
Price: 1 USD

Model Number : KJ-2012A

Warranty : 12 Months

Price : Negotiable

Controller : Programmable LCD touch screen

MOQ : 1 Set

Delivery Time : 20 days after order

Size : Customized

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Control range of temperature : RT+10℃~200℃ （Customizable）

Inside material : Stainless steel SUS 304 #

Temperature fluctuation : ±1℃

Certification : ISO, CE and etc.

Brand Name : KINSGEO

Supply Ability : 100 sets per month

Product name : Oven Type Holding Power Tester

Place of Origin : CHINA

Packaging Details : Plywood box

Contact Now

Application:

The oven type tape holding power testing machine tests the ability of the adhesive tape, which is adhered to the test board in accordance with the specified method at a certain set temperature, to resist displacement under the specified gravity along the length direction. The holding power of the adhesive tape is expressed by the time it takes for the test piece to move a certain distance (Or completely detach) within a certain period of time.

Technical parameter :

Number of retaining force sets		10 sets	20 sets	30 sets
Inner box dimensions (W x H x D) (cm)		47×40×35	87×44×40	87×43×56
Outer box dimensions (W x H x D) (cm)		99×71×47	134×85×50	147×97×80
Power:		4.5KW	5KW	5KW
Voltage		220V	220V	220V
Weight of weights		1000g/500g
Temperature control range		Room temperature + 15℃ to 200℃ (Maximum usage temperature≦90%)
Performance	Temperature fluctuation degree	±0.5℃；
	Temperature uniformity	±2℃(200℃)；
	Controller resolution	±0.3℃；
	Control method	PC-based P.L.D automatic temperature control calculation.
	Heating time	About 15 minutes at 100℃
Material	Inner wall	SUS 304# steel plate
	Shell	Cold-rolled steel plate with paint treatment
	Insulation material	Temperature-resistant material
Timer		Electronic liquid crystal display, automatically retains time, 99999.9 hours (Or minutes can be set)
Electrical control		All test pieces fall, buzzer sounds (With switch), and automatic heat cut-off
Safety device		Grounding protection device, workbench over-temperature protection, heater short circuit/overload protection, motor overload protection.
Power supply		220V AC ±10% 50Hz

Compliant Standards: GB/T4851,CNS-11887,11888,PSTC-7

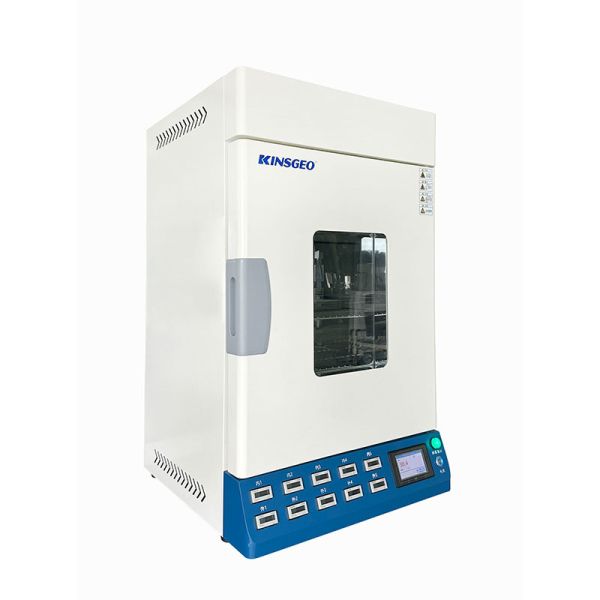

Oven Adhesive Holding Force Tester Constant Temperature Retention Test Device
