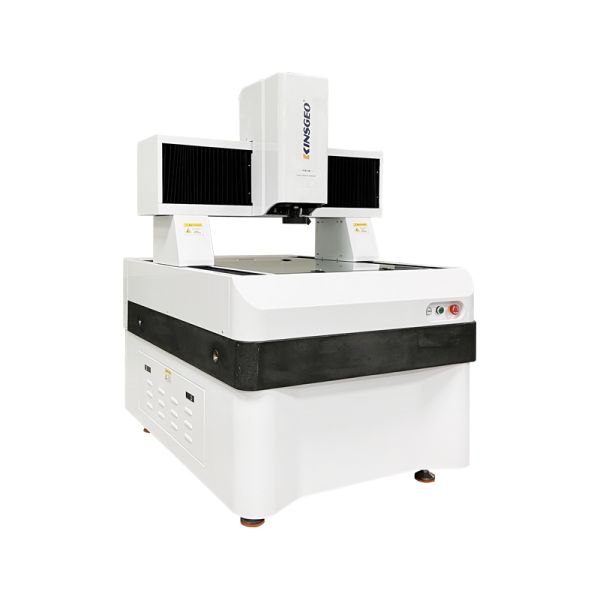

3D Coordinate Image Measuring Instrument, Vision Measuring Machine Support OEM

Name: 3D Coordinate Image Measuring Instrument Vision Measuring Machine Support OEM
Brand: KEJIAN
Price: 6500 USD

Quality 3D Coordinate Image Measuring Instrument, Vision Measuring Machine Support OEM for sale

Place of Origin : CHINA

Supply Ability : 100 units per month

Brand Name : KEJIAN

Packaging Details : wooden box

Objective magnification : 0.7X-4.5X

Test distance(mm) X*Y*Z : 300x200x200

Model Number : KJ-VMC

Price : 6500USD

Composite Multiple : 20~128X

Warranty : 12 Months

product name : 2D Image Measuring Instrument

Payment Terms : L/C,T/T

Resolution : 0.1μm

Certification : CE GS

Working Distance : 82mm

MOQ : 1 unit

X Y axis accuracy(μm) : ≤3+L/200(L is the unit of measure mm)

Delivery Time : 5-8 work days

Contact Now

3D Coordinate Measurement Optical Image Measuring Machine

Instructions
VMC is a fully automatic image measuring instrument developed for product measurement applications. It adopts flexible manual variable times, optimized hardware and software configuration, and perfectly realizes the full automatic measurement requirements of various 2D sizes in batches, widely used in mold, precision hardware, mobile phone panels, glass, touch screen and other industries.

Features

It has the function of data processing, display, input and output, and the accuracy of measurement image

is extremely high.After connecting with the computer there is special measurement software to measure.

Technical Parameter

Model	2010(Manual)	3020(Manual)	4030(Manual)
Size of machine body	600×500×850mm	850×600×900mm	970×670×940mm
Size of metal platform	345×250mm	450×350mm	650×350mm
Size of glass platform	220×150mm	340×240mm	480×370mm
Actual working stroke	200×100×130mm	300×200×150mm	400×300×150mm
Weight of machine body	100kg	200kg	250kg
Machine pedestal	00 Level Granite
Linear accuracy	3+L/75µm
Surface lighting	LED ring form super bright cold light source(luminance adjustable)
Outline shining	LED super bright roundness light(luminance adjustable)
Calculation measurement	REICA 2.5D Precise measurement system software
Analysis force	0.001mm
Repeat accuracy	0.002mm
Resolution of optical scale	0.001MM
CCD	Standard equipment: SONY chip1/3 color CCD
Eyepiece	Standard equipment: 0.5X(can choose 1X,2X)
Object glass	0.7X～4.5X Amplification factor: 20X～120X
Grating ruler	Standard equipment: Qingdao Qihai brand. Resolution: 1µm.
Power supply	AC90～264V, 50/60Hz
Light source material	LED cold light source(two groups, luminance can be adjustable)
Accuracy	3+L/150um National standard
Load	30KG
Operating method	Manual shake(fine adjustment and fast movement)
Input power	90～264VAC, 47～63Hz, 10AMP
Environmental demand of lab	Temperature: 20±2℃. Humidity: 40%～70%. Vibration: ＜2℃/hr. Dust prevention: ＜15Hz. Avoid strong magnetoelectricity.
